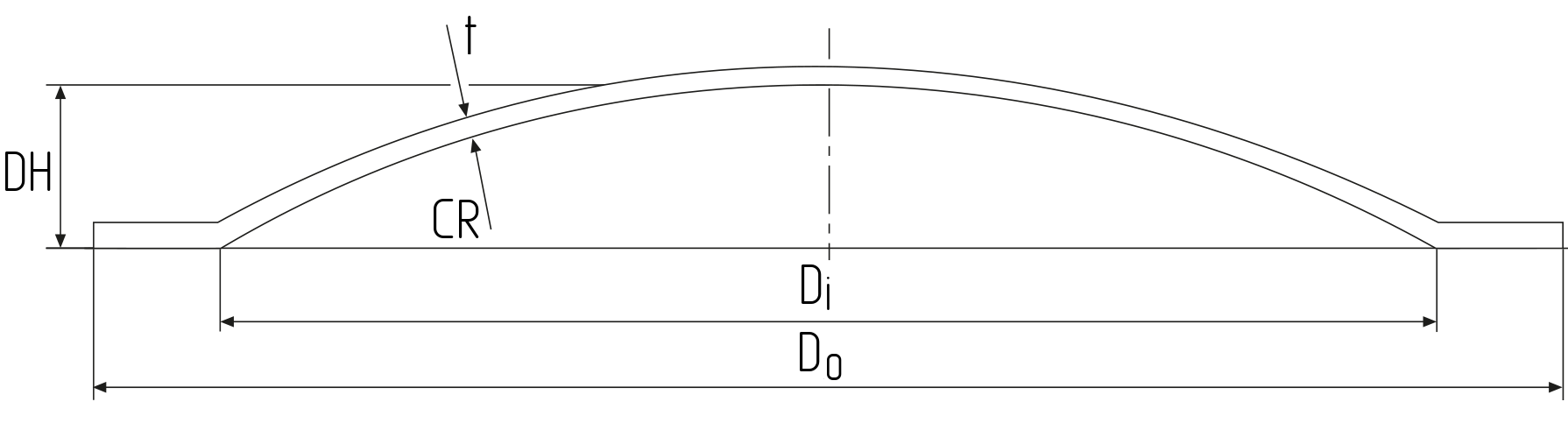

Plate-type head
Legend Plate-type head
- t = wall thickness
- Do = outside diameter
- Di = inside diameter
- CR = crown radius
- KR = knuckle radius
- SF = straight flange height
- DH = dished height
- THi = total height inside
CR
Di
DH
0,134 x Di
