Kalott (Convex disc)

Kalott (Convex disc)

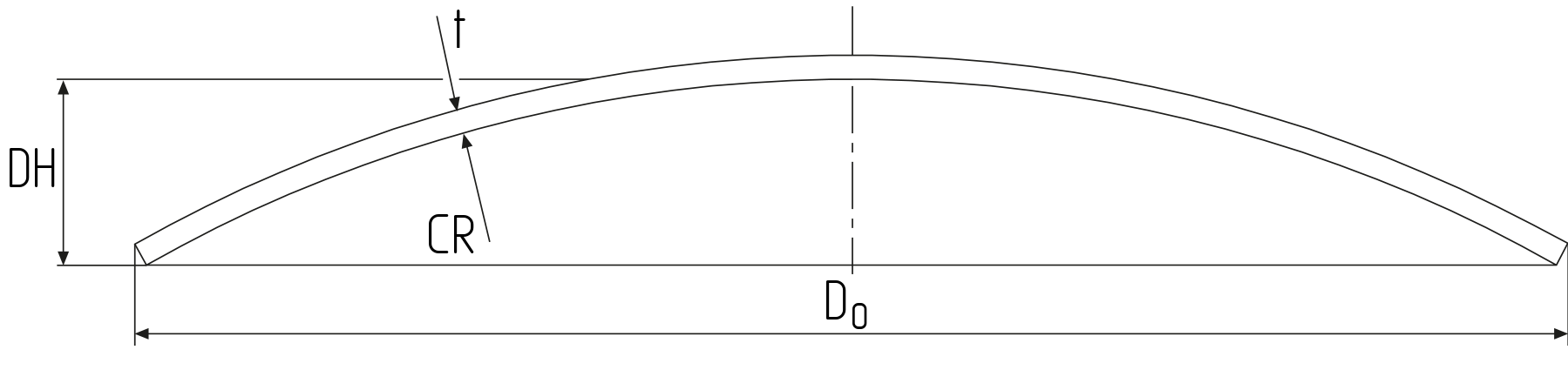

Legend Convex disk

  • t = wall thickness
  • Do = outside diameter
  • Di = inside diameter
  • CR = crown radius
  • KR = knuckle radius
  • SF = straight flange height
  • DH = dished height
  • THi = total height inside

Type CR Do
DH 0,134 x Do
Type CR 0,8 x Do
DH 0,176 x Do
Type CR acc. to specification
